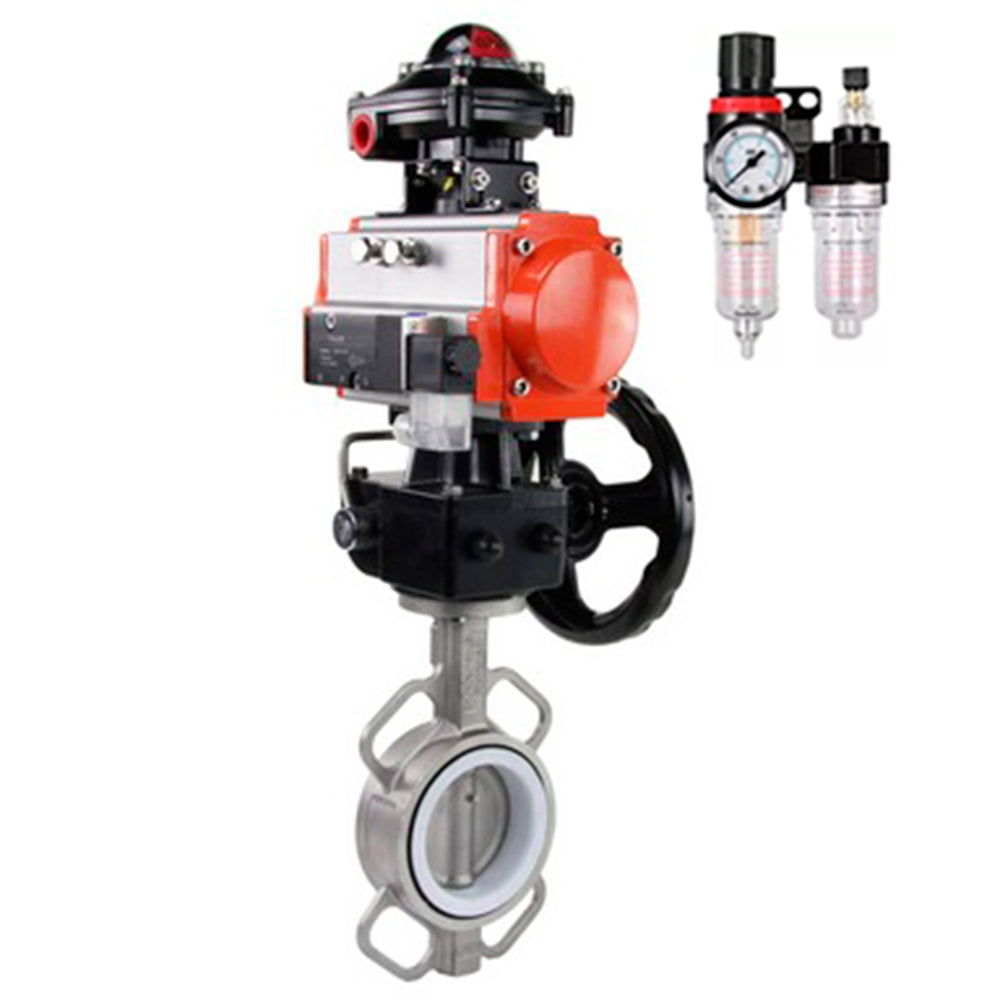

Water Butterfly Valve Elephant WBV3131P-2W-Fb-H, body material - Stain
Elephant  |  SKU: D050-42256

Water Butterfly Valve Elephant WBV3131P-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - PTFE, pneumatic actuator PA-DA double action, 4V320-10 220V, LSU APL-410N EX, handwheel MON, ATU AFC2000

€556,90
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Rotary disc gate valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Operating principle: The valves are opened and closed by turning the disc by 90°. Opening is performed by turning the handle anti-clockwise, closing - clockwise.
Elephant pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control with maximum torque up to 2128 Nm.
The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.





Technical characteristics of butterfly valves Elephant WBV3131P-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - PTFE

Specification Value
Valve Type Rotary disc
Diameter 50-150 mm
Nominal Pressure 16 bar
Operating Medium Temperature from -10 to +180°C
Application Water supply, Heating, Chemical industry, Oil and gas industry, Food industry, Pulp and paper industry
Connection Type Wafer-type
Control Type Pneumatic actuator
Tightness Class A
Country of Manufacture China
Service Life 10 years
Warranty 12 months





Dimensions and dimensions of butterfly valves Elephant WBV3131P-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - PTFE

Size A, mm B, mm C, mm PCD, mm ØD, mm H, mm Q°
DN50 72.5 130.5 43 125 19 220 45
DN65 77.5 146.5 46 145 19 220 45
DN80 92 156 46 160 19 220 22.5
DN100 109 168.5 52 180 19 260 22.5
DN125 127 190.5 56 210 19 260 22.5
DN150 141 213.5 56 240 23 260 22.5
DN200 166 246.5 60 295 23 - 15
DN250 203 283 68 355 28 - 15
DN300 236 318 78 410 28 - 15

Sketch dimensions and dimensions of butterfly valves Elephant WBV3131P-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - PTFE



Table of parts and materials for butterfly valves Elephant WBV3131P-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - PTFE

№ Part Name Material
1 Body Stainless steel 304
2 Disc Stainless steel 304
3 Seat Seal PTFE
4 Shaft Stainless steel SS 416
5 Handle Carbon steel

Parts and materials sketch for butterfly valves Elephant WBV3131P-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - PTFE





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical parameters of pneumatic valve Elephant 4V320-10 220V

Characteristic Value
Pneumatic Valve Model 4V320-10 220V
Supply Voltage 220V
Valve Type Spool-type
Nominal Pressure 12 bar
Operating Pressure 1.5...8 bar
Ambient Temperature -5 to +50 °C
Working Medium Purified air (filtration 40 μm)
Actuation Frequency 5 cycles/s
Protection Class IP65
Control Type Double-solenoid
Body Material Aluminum alloy and technopolymer
Response Time 0.05 s
Working Channel Diameter 3/8"





Dimensions and dimensions of Elephant 4V320-10 220V pneumatic directional control valve

A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
H, mm 82.4
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
Sketch of dimensions and dimensions of pneumatic valve Elephant




Technical parameters of limit switch unit Elephant APL-410N EX

Characteristic Value
Model of Limit Switch Box APL-410N EX
Protection Weatherproof IP65, Explosion-proof Exd IIB T6
Ambient Temperature -25°C to +80°C
Cable Entry Thread 2 x NPT 1/2”
Terminal Block 8 terminals 0.05-2.5 mm²
Rated Current 10 A
Rated Voltage 250V
Switches/Sensors Two mechanical switches / Two proximity sensors
Full Rotation Angle 90°
Service Life 10 years





Dimensions and dimensions of limit switch unit Elephant APL-410N EX

A, mm 177
B, mm 174
C, mm 178
D, mm 101
E, mm 76
F, mm 57
G, mm 55
H, mm 23
I, mm 27
J, mm 3
K, mm 4
d1, mm 5
d2, mm 9.5
Sketch of dimensions and dimensions of limit switch unit Elephant APL-410N EX



Technical parameters of Elephant AFC2000 air treatment unit

Characteristic Value
Operating Pressure 8 bar
Maximum Pressure 10 bar
Adjustable Pressure Range 0.5...9 bar
Burst Pressure 15 bar
Operating Temperature -5°C to +60°C
Air Connection 1/4"
Filtered Particle Size 40 µm
Oil Viscosity ISO VG 32



Dimensions and dimensions of Elephant AFC2000 air treatment unit

Model AFC2000
A, mm 162
B, mm 88
C, mm 139
D, mm 31
E, mm 53.5
F, mm 12
G, mm 8
H, mm 7
I, mm 13.3
J, mm 39
K, mm 5
L, mm 40
M, mm 32
N, mm 53
O, mm 29
P, mm 6
R, mm 41.5
Sketch of dimensions and dimensions of Elephant AFC2000 air treatment unit



Technical data for Elephant MON gearboxes (handwheels)

Characteristic Value
Operating Mode Intermittent, Reversible
Working Medium Filtered compressed air or non-aggressive gases, oils
Operating Temperature -20°C to +80°C
Climatic Design U, UHL, T, OM
Stroke Mechanical limit 0-90°
Protection Degree IP67
Connection Type ISO 5211
Application Water supply, heating, fire protection, heat points
Torque 250-1200 Nm





Dimensions and mounting dimensions of gearboxes (handwheels) Elephant MON

Model D1 (mm) D2 (mm) D3 (mm) D4 (mm) C (mm) M (mm) b1 (mm) N (mm) b2 (mm) A (mm) B (mm) F (mm) T (mm) Y (mm) H (mm) S (mm) K (mm)
HDM-1 50 70 50 70 88 16 14 22 14 90 55 115 44 145 120 53 10
HDM-2 70 102 70 102 110 18 17 22 17 125 64 135 62.5 178 133 56.5 13
HDM-3 102 125 102 125 129 22 22 28 22 140 71 166 70

Especificaciones
  • País de origen
    Chine
  • Temperatura máxima permitida
    180 °C
  • Tipo de conexión
    bride compacte
  • Entorno operativo
    Water, Acids, Alkalis
  • Tipo de sello
    PTFE
  • Material del disco
    Acier inoxydable AISI 304
  • Anulación manual
    volant à main
  • Interruptores de límite
    Oui
  • Tensión de alimentación
    220 V
  • Tipo de actuador neumático
    double action

Reseñas (0)

Documentación
nullAir treatment unit AFC2000 ELEPHANT
nullData sheet for limit switch unit Elephant APL-410N EX
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullButterfly valve Elephant WBV3131x-2W-Fb-H DN50-250 16 bar
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs

Pago y seguridad

Métodos de pago

    Su información de pago se procesa de forma segura. No almacenamos los datos de su tarjeta de crédito ni tenemos acceso a la información de su tarjeta de crédito.

    Variantes disponibles

    SKUTaille de la connexionPressionPrecio DisponibilidadCantidad Añadir al carrito
    D050-42256DN10016 bars €556,90 Agotado
    D050-42257DN12516 bars €673,47 Agotado
    D050-42258DN15016 bars €718,38 Agotado
    D050-42259DN20016 bars €1.027,26 Agotado
    D050-42260DN25016 bars €1.414,54 Agotado
    D050-42253DN5016 bars €428,02 Agotado
    D050-42254DN6516 bars €444,47 Agotado
    D050-42255DN8016 bars €543,77 Agotado
