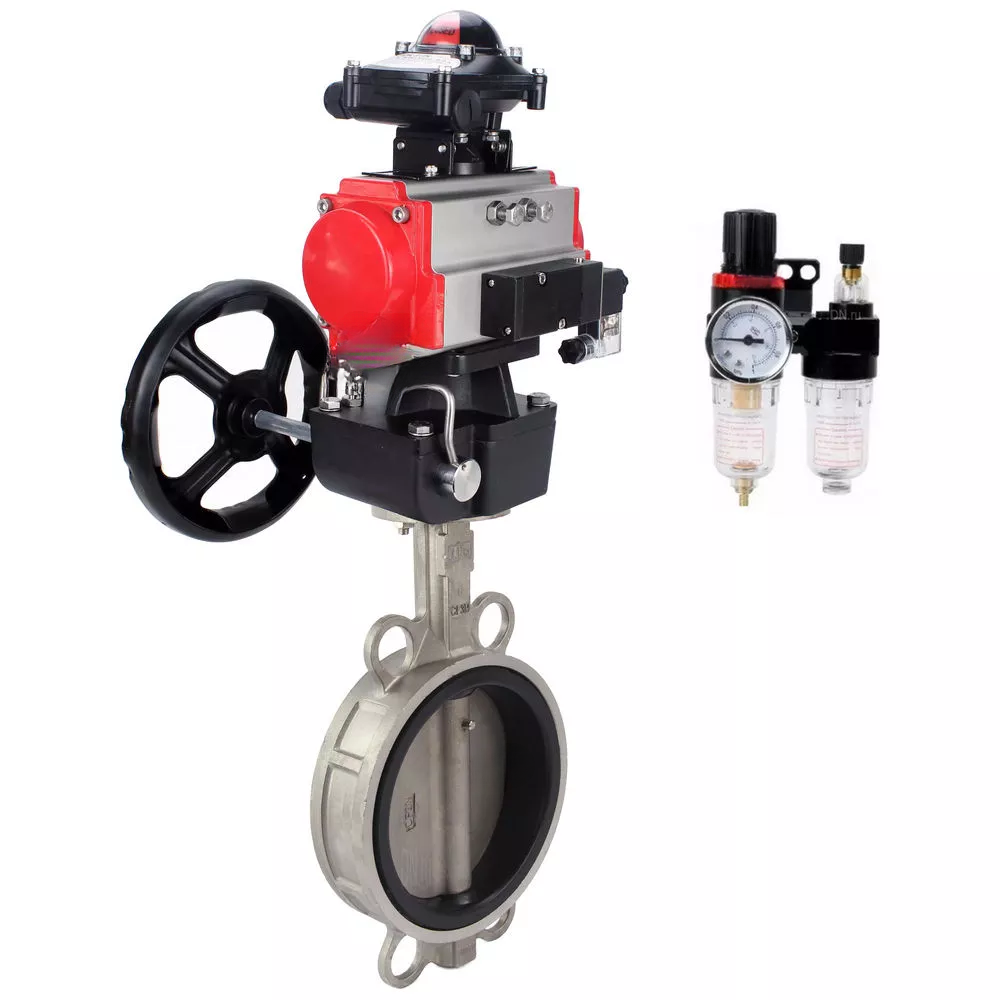

Water Butterfly Valve Elephant WBV3232N-2W-Fb-H, stainless steel 316L, seal - NBR, with pneumatic actuator PA-DA, with pneumatic distributor 4V320-10 220V, LSU APL-410N Ex, manual override MON, ATU AFC2000

Butterfly valves Elephant are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic valve Elephant 4V320-10 220V is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
The Elephant APL-410N EX limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off valve shut-off device. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. The use of limit switch units makes it possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.
The Elephant MON manual doubler with worm gear and HDM reduction gearbox allows to manually set the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual doubler is intended to provide the most effective and efficient solution to the full range of manual override applications.
The AFC2000 air treatment unit is designed to purify compressed air from dripping moisture and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from a reservoir in the compressed air stream to pneumatic system elements with a large capacity range from 500 liters/minute to 10,000 liters/minute. The lubricator adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.

Technical parameters of water butterfly valve Elephant WBV3232N-2W-Fb-H, stainless steel 316L, seal - NBR, with pneumatic actuator PA-DA, with pneumatic distributor 4V320-10 220V, limit switch unit APL-410N Ex, manual override MON, ATU AFC2000:

Table of parts and materials of water butterfly valve Elephant WBV3232N-2W-Fb-H, stainless steel 316L, seal - NBR, with pneumatic actuator PA-DA, with pneumatic distributor 4V320-10 220V, limit switch unit APL-410N Ex, manual override MON, ATU AFC2000:

Technical data of DA double-acting pneumatic actuators:

DA pneumatic actuators double-acting rotary actuators

Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Sketch of dimensions of DA double-acting pneumatic actuators

Materials of parts for DA double-acting pneumatic actuators:

Material sketch of DA double-acting pneumatic actuators

Technical parameters of pneumatic valve Elephant 4V320-10 220V:

Technical parameters of limit switch units Elephant APL-410N EX

Technical parameters of manual doublers Elephant MON:
