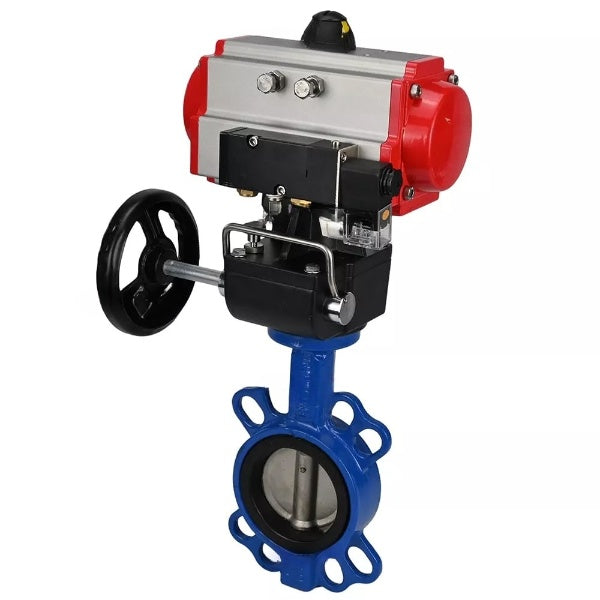

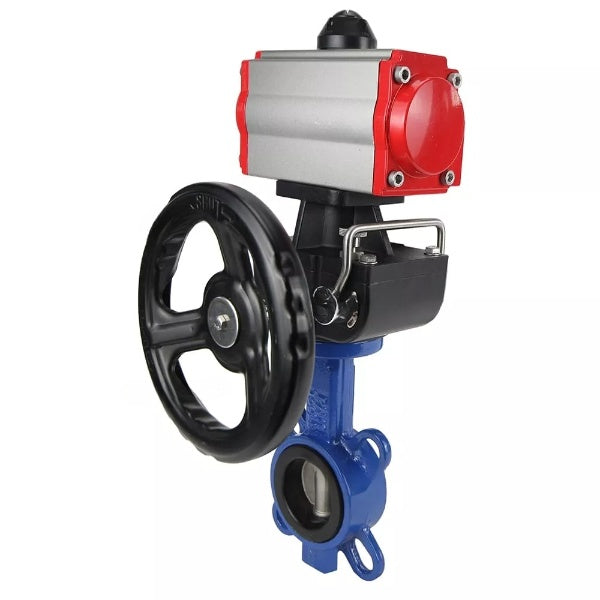

Vanne papillon d'eau Elephant WBV3432N-2W-Fb-H, matériau du corps - ac – Valve Elephant
1 3
Elephant  |  SKU: D050-34015

Vanne papillon d'eau Elephant WBV3432N-2W-Fb-H, matériau du corps - acier au carbone, matériau du disque - acier inoxydable AISI 316L, joint - NBR, avec actionneur pneumatique double effet PA-DA, 4V320-08 220V, volant MON

€461,83
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Vanne papillon d'eau Elephant WBV3432N-2W-Fb-H, matériau du corps - acier au carbone, matériau du disque - acier inoxydable AISI 316L, joint - NBR, avec actionneur pneumatique double effet PA-DA, 4V320-08 220V, volant MON - DN100 / 16 bars está agotado y se enviará tan pronto como vuelva a estar disponible.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

The butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.

The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The HDM worm gear manual doubleturn actuator with reduction gearbox allows manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.





Technical parameters of Water Butterfly Valve Elephant WBV3432N-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON:

Nominal diameter DN, mm 40 - 300
Nominal pressure PN, bar 16
Flow direction double-sided
Working medium temperature t, ⁰C -20 to +85 for NBR
-20 to +120 for EPDM
-10 to +180 for PTFE
Ambient temperature t, ⁰C -40 to +120
Working medium EPDM: cold and hot water, air without impurities of oil and grease, other media neutral to the material
PTFE: water, alkalis, acids, solvents and oxidizers
NBR: water, mineral oils, hydrocarbons,
oils, fats
Connection to pipeline interflange

Butterfly valves WBV3432N-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON





Dimensions and dimensions of butterfly valves Elephant WBV3432N-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON:

DN H1, mm H2, mm Dm, mm Dk, mm L, mm ØC, mm
DN40/50 66 126 73 90 43 125
DN50 66 126 73 90 43 125
DN65 74 137 85 103 46 145
DN80 91 146 100 116 46 160
DN100 105 166 131 151 52 180
DN125 121 182 155 174 56 210
DN150 134 198 184 205 56 240
DN200 169 223 234 255 60 295
DN250 200 270 288 315 68 355
DN300 240 299 340 375 78 410

Затворы дисковые поворотные DN.ru WBV3432P-2W-Fb Ду40-300 Ру16, корпус - углеродистая сталь WCB, диск - нержавеющая сталь 316L, уплотнение - PTFE, с пневмоприводом PA-DA двойного действия, с пневмораспределителем 4M310-08 220В, с БКВ APL-510N-EX

Sketch Butterfly valves WBV3432N-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON





Materials of butterfly valves Elephant WBV3432N-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON:

№ Name Material
1 Housing WCB steel or AISI 316L stainless steel
2 Cuff EPDM, PTFE, NBR
3 Disc AISI 316L stainless steel
4 Rod SS 416/2Cr13 stainless steel
5 Pin AISI 316L stainless steel
6 Bushing EPDM
7 Sealing ring EPDM
8 Fixing plate carbon steel

Эскиз Затворы дисковые поворотные DN.ru WBV3232P-2W-Fb Ду40-150 Ру16, корпус - нержавеющая сталь 316L, диск - нержавеющая сталь 316L, уплотнение - PTFEс рукояткой, с двумя концевыми датчиками LS-103 250В и кронштейном для крепления концевых выключателей

Sketch of parts and materials Butterfly valves WBV3432N-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical parameters of pneumatic valve 4V320-08 220V:

Name meaning
Type of pneumatic valve slide valve
Working pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Total power, Va 4.5
Control double-sided electromagnetic
Frequency of operation, cycle/sec 5

Pneumatic valve 4V320-08 220V





Dimensions and dimensions of pneumatic valve 4V320-08 220V:

Pneumatic valve model 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4

Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V





Technical parameters of the handwheel MON:

Name Value
Climatic version U,UHL,T,OM
Degree of protection, IP 67
Connection type ISO 5211
Manual doubler MON





Dimensions and dimensions of the handwheel MON:

Model MON1-250-T26-ISO MON2-450-T28-ISO MON3-700-T38-ISO MON4-1200-T54-ISO
b1, mm 14 17 22 27
N, mm 22 22 28 32
b2, mm 14 17 22 27
M, mm 16 18 22 30
D1, mm Ø50 Ø70 Ø102 Ø102
4-M1, mm 4-M6 4-M8 4-M10 4-M10
D2, mm Ø70 Ø102 Ø125 Ø125
4-M2, mm 4-M8 4-M10 4-M12 4-M12
E, mm 70x70 95x95 114x114 129x129
D3, mm Ø50 Ø70 Ø102 Ø125
4-Ø1, mm 4-Ø6.5 4-Ø8.5 4-Ø10.5 4-Ø12.5
D4, mm Ø70 Ø102 Ø125 Ø140
4-Ø2, mm 4-Ø8.5 4-Ø10.5 4-Ø12.5 4-Ø16.5
A, mm 90 125 140 188.5
B, mm 55 64 71 93
ØC, mm Ø88 Ø110 Ø129 Ø174
F, mm 115 135 166 202
T, mm 44 62.5 70 94
Y, mm 145 178 212 280
H, mm 120 133 180 195
S, mm 53 56.5 68.7 84
K, mm 10 13 12.5 15
Ø hand wheel, mm 180 200 280 320
Sketch of dimensions and dimensions of the MON handwheel MON





MON handwheel materials:

№ Name Material
1 Stem for mounting the pneumatic actuator Steel 45
2 Sealing ring EPDM
3 Fixing spring Spring steel
4 Upper end cover Aluminum alloy
5 Screw Steel 304
6 Locking bracket (main rod) Steel 304
7 Housing Aluminum alloy
8 Sealing ring EPDM
9 Gear unit Cast iron BCh50
10 Transition coupling Cast iron BCh40
11 Gear stem Cast iron BCh40

Materials of the handwheel

Especificaciones
  • País de origen
    Chine
  • Temperatura máxima permitida
    85 °C
  • Tipo de conexión
    bride compacte
  • Tipo de sello
    NBR
  • Material del disco
    acier inoxydable AISI 316L
  • Anulación manual
    volant à main
  • Interruptores de límite
    Non
  • Sensor de retroalimentación
    Non
  • Tensión de alimentación
    220 V
  • Tipo de actuador neumático
    double action

Reseñas (0)

Documentación
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullButterfly valve Elephant WBVx32x-2W-Fb-H DN40-300 16 bar
nullHandwheel ELEPHANT MONx-x-x-ISO for pneumatic actuators and quarter-turn valves
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
