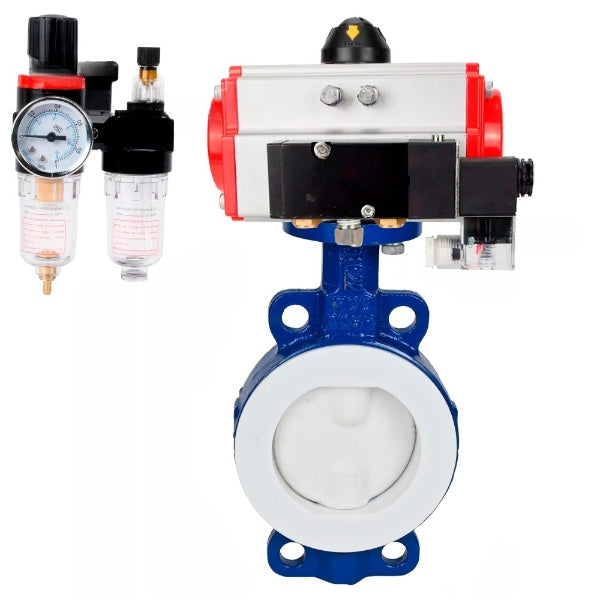

Vanne papillon d'eau Elephant WBV3434Pf-2W-Fb-H, matériau du corps - Acier au carbone, matériau du disque - Acier au carbone, joint - PTFE, actionneur pneumatique PA-SA avec ressorts de rappel, 4M310-08 220V BPV AFC2000
Vanne papillon d'eau Elephant WBV3434Pf-2W-Fb-H, matériau du corps - Acier au carbone, matériau du disque - Acier au carbone, joint - PTFE, actionneur pneumatique PA-SA avec ressorts de rappel, 4M310-08 220V BPV AFC2000 - DN100 / 16 bars está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
Rotary disc gate valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Operating principle: The valves are opened and closed by turning the disc by 90°. Opening is performed by turning the handle anti-clockwise, closing - clockwise. The peculiarity of the gate valves of this series is the complete covering of the flow part and disc with PTFE material, which makes it possible to exclude the contact of the working medium with the materials of the main parts.
Elephant pneumatic double-acting rotary actuators PA-DA-XXX and pneumatic rotary actuators with return spring PA-SA-XXX are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
Technical characteristics of butterfly valves Elephant WBV3434Pf-2W-Fb-H, body material - Carbon steel, disk material - Carbon steel, seal - PTFE
| Characteristic | Value |
|---|---|
| Type of valve | Rotary disc |
| Diameter | 50-300 mm |
| Nominal pressure | 16 bar |
| Operating temperature | -10 to +150°C |
| Application | water supply, heat supply, chemical industry, oil and gas industry, food industry, pulp and paper industry |
| Connection type | Wafer |
| Control type | Pneumatic actuator |
| Leakage class | A |
| Country of origin | China |
| Service life | 10 years |
| Warranty | 12 months |
Dimensions and dimensions of butterfly valves Elephant WBV3434Pf-2W-Fb-H, body material - Carbon steel, disk material - Carbon steel, seal - PTFE
| DN | L, mm | D1, mm | D2, mm | Z-Ød, mm | H1, mm |
| DN50 | 43 | 125 | 100 | 2-Ø18 | 80 |
| DN65 | 46 | 145 | 120 | 2-Ø18 | 90 |
| DN80 | 46 | 160 | 135 | 4-Ø18 | 100 |
| DN100 | 52 | 180 | 155 | 4-Ø18 | 110 |
| DN125 | 56 | 210 | 185 | 4-Ø18 | 120 |
| DN150 | 56 | 240 | 210 | 4-Ø18 | 150 |
| DN200 | 60 | 295 | 265 | 4-Ø18 | 170 |
| DN250 | 68 | 355 | 320 | 4-Ø18 | 190 |
| DN300 | 78 | 410 | 375 | 4-Ø18 | 230 |
Table of parts and materials for butterfly valves Elephant WBV3434Pf-2W-Fb-H, body material - Carbon steel, disk material - Carbon steel, seal - PTFE
| № | Component Name | Material |
|---|---|---|
| 1 | Body | DN50-200 – WCB Steel + PTFE | DN250-300 – WCB Steel + PFA |
| 2 | Disc | DN50-200 – WCB Steel + PTFE | DN250-300 – WCB Steel + PFA |
| 3 | Stem | DN50-250 – 2Cr13 Steel | DN300 – 45 Steel |
| 4 | Seat Seal | PTFE |
Parts and materials sketch for butterfly valves Elephant WBV3434Pf-2W-Fb-H, body material - Carbon steel, disk material - Carbon steel, seal - PTFE
Technical parameters of pneumatic actuator Elephant
| Characteristic | Value |
|---|---|
| Pneumatic Actuator Type | Double-acting |
| Actuator Torque | 30-272 Nm |
| Nominal Pressure | 12 bar |
| Operating Pressure | 2...8 bar |
| Maximum Particle Diameter | Less than 30 µm² |
| Working Medium | Filtered compressed air or non-aggressive gases, oils |
| Adjustment Range | ± 5° for rotation at 0° and 90° |
| Air Supply Connection | G1/4" |
| Operating Temperature Range | -20 to +80 °C |
| Connection Type | ISO 5211 |
Dimensions and dimensions of pneumatic actuator Elephant
| Model | A | B | C | D | E | F | G | M | N | O | P |
| PA-DA(SA)-052 | 108 | 153 | 30 | 41 | 72 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-065 | 125 | 174 | 36 | 46 | 89 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-083 | 152 | 216 | 46 | 55 | 109 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-105 | 189 | 279 | 55 | 64 | 134 | 26 | 25 | 80 | 30 | 41 | 20 |
| PA-DA(SA)-130 | 210 | 308 | 67.5 | 70 | 157 | 36 | 25 | 80 | 30 | 62 | 30 |
| PA-DA(SA)-140 | 268 | 405 | 76 | 77 | 174 | 36 | 30 | 130 | 30 | 62 | 30 |
| PA-DA(SA)-160 | 310 | 465 | 87.5 | 87.5 | 199 | 38 | 30 | 130 | 30 | 62 | 30 |
| PA-DA(SA)-210 | 390 | 542 | 113 | 113 | 257 | 38 | 40 | 130 | 30 | 79 | 30 |
| PA-DA(SA)-270 | 510 | 722 | 146 | 146 | 333 | 38 | 52 | 130 | 30 | 79 | 30 |
Sketch of dimensions and dimensions of pneumatic actuator Elephant
Parts and materials table for pneumatic actuator Elephant
| № | Name | Qty | Material | Coating |
|---|---|---|---|---|
| 1 | Housing | 1 | Extruded aluminum | Hard anodized |
| 2 | Side plugs | 2 | Cast aluminum | |
| 3 | Gear | 1 | Stainless steel | Nickel-plated |
| 4 | Piston | 2 | Steel/Aluminum | Oxidation/Galvanic zinc coating |
| 5 | Plugs | 8 | Stainless steel | |
| 6 | Piston ring | 2 | NBR | |
| 7 | Springs | 0-12 | Spring steel | Epoxy coating |
| 8 | Piston bearing | 2 | Engineering plastic | |
| 9 | Piston ring | 2 | NBR | |
| 10 | Plug | 2 | NBR | |
| 11 | Stop ring | 2 | Engineering plastic | |
| 12 | Ring | 1 | Engineering plastic | |
| 13 | Washer | 1 | Stainless steel | |
| 14 | Spring clamp | 2 | Stainless steel | |
| 15 | Indicator | 1 | Plastic | |
| 16 | Indicator housing | 1 | Plastic | |
| 17 | Bearing | 1 | Engineering plastic | |
| 18 | Cam | 1 | Steel | Oxidation/Galvanic zinc coating |
| 19 | Bearing | 1 | NBR | |
| 20 | Bearing | 1 | Engineering plastic | |
| 21 | Bearing | 1 | Engineering plastic | |
| 22 | Sealing ring | 2 | NBR | |
| 23 | Sealing ring | 2 | NBR | |
| 24 | Bearing | 2 | Stainless steel | |
| 25 | Adjustment nut | 2 | Stainless steel | |
| 26 | Adjustment screw | 2 | Stainless steel | |
| 27 | Bushing | 2 | Aluminum |
Sketch of rotary pneumatic actuators Elephant
Technical parameters of pneumatic valve Elephant 4M310-08 220V
| Specification | Value |
|---|---|
| Pneumatic Valve Model | 4m310-08 220V |
| Supply Voltage | 220V |
| Design | Spool type |
| Nominal Pressure | 12 bar |
| Working Pressure | 1.5...8 bar |
| Ambient Temperature | from +5 to +50°C |
| Working Medium | Filtered compressed air |
| Switching Frequency | 5 cycles/s |
| Protection Class | IP65 |
| Mounting | Through holes in the body |
| Body Material | Anodized aluminum |
| Response Time | 0.05 s |
Dimensions and dimensions of Elephant 4M310-08 220V pneumatic directional control valve
Technical parameters of Elephant AFC2000 air treatment unit
| Characteristic | Value |
|---|---|
| Operating Pressure | 8 bar |
| Maximum Pressure | 10 bar |
| Adjustable Pressure Range | 0.5...9 bar |
| Burst Pressure | 15 bar |
| Operating Temperature | -5°C to +60°C |
| Air Connection | 1/4" |
| Filtered Particle Size | 40 µm |
| Oil Viscosity | ISO VG 32 |
Dimensions and dimensions of Elephant AFC2000 air treatment unit
| Model | AFC2000 |
| A, mm | 162 |
| B, mm | 88 |
| C, mm | 139 |
| D, mm | 31 |
| E, mm | 53.5 |
| F, mm | 12 |
| G, mm | 8 |
| H, mm | 7 |
| I, mm | 13.3 |
| J, mm | 39 |
| K, mm | 5 |
| L, mm | 40 |
| M, mm | 32 |
| N, mm | 53 |
| O, mm | 29 |
| P, mm | 6 |
| R, mm | 41.5 |
Especificaciones
Especificaciones
-
País de origen
-
Temperatura máxima permitida
-
Tipo de conexión
-
Entorno operativoWater, Acids, Alkalis, Chemical Environment
-
Tipo de sello
-
Material del disco
-
Anulación manual
-
Interruptores de límite
-
Tensión de alimentación
-
Tipo de actuador neumático
