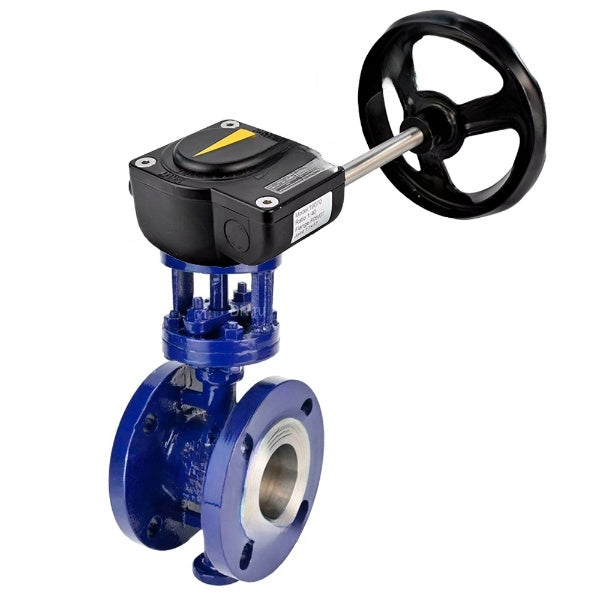

Vanne papillon d'eau Elephant WBV3EX-3432M-1W-F-ISO, matériau du corps - Acier au carbone, matériau du disque - Acier inoxydable AISI 316, joint - Métal, réducteur HAM RQN
Vanne papillon d'eau Elephant WBV3EX-3432M-1W-F-ISO, matériau du corps - Acier au carbone, matériau du disque - Acier inoxydable AISI 316, joint - Métal, réducteur HAM RQN - DN100 / 25 bars está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. The valves are opened and closed by turning the disk by 90°. The triple eccentricity design reduces friction at the disk and seat contact points, which increases the reliability and service life of the gate. In this design, the stem is offset relative to the center axis of the disc and the center axis of the pipeline, and the sealing surfaces are asymmetrically shaped. The combination of the three displacements at the moment of pressing and opening of the sealing surfaces ensures complete absence of friction of the sealing surfaces, helping to minimize wear of the seat and seal during the entire service life of the gate.
The HAM gearbox allows the required positioning of the shut-off body to be manually set by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter turn actuators. Suitable for ball valves, butterfly valves, valves with a 90° swing angle as well as for controlling air dampers.
Technical parameters of Water Butterfly Valve Elephant WBV3EX-3432M-1W-F-ISO, body material - Carbon steel, disk material - Stainless steel AISI 316, seal - Metal, gearbox HAM RQN:
| Gate type | rotary disk |
| Diameter | 50-250 mm |
| Nominal pressure | 25 bar |
| Medium temperature | -45 to +425°C |
| Application | water supply, heat supply, process pipelines |
| Connection type | flanged |
| Control type | Manual (handle, reducer) |
| Sealing class | A |
| Manufacturer's country | Russia |
| Service life | 10 years |
| Warranty | 12 months. |
Butterfly valves WBV3EX-3431M-1W-F-ISO, body material - Carbon steel, disk material - Stainless steel AISI 304, seal - Metal, gearbox HAM RQN
Dimensions and dimensions of butterfly valves Elephant WBV3EX-3432M-1W-F-ISO, body material - Carbon steel, disk material - Stainless steel AISI 316, seal - Metal, gearbox HAM RQN:
| DN | L, mm | D, mm | D1, mm | D2, mm | n–Ød, mm | b, mm | H1, mm | H2, mm |
| 50 | 108 | 160 | 125 | 99 | 4–Ø18 | 20 | 102 | 78 |
| 65 | 112 | 180 | 145 | 118 | 8–Ø18 | 22 | 112 | 72 |
| 80 | 114 | 195 | 160 | 132 | 8–Ø18 | 24 | 122 | 78 |
| 100 | 127 | 230 | 190 | 156 | 8–Ø22 | 24 | 155 | 78 |
| 125 | 140 | 270 | 220 | 184 | 8–Ø26 | 26 | 157 | 95 |
| 150 | 140 | 300 | 250 | 211 | 8–Ø26 | 28 | 170 | 95 |
| 200 | 152 | 360 | 310 | 274 | 12–Ø26 | 30 | 200 | 102 |
| 250 | 165 | 425 | 370 | 330 | 12–Ø30 | 32 | 247 | 108 |
| 300 | 178 | 485 | 430 | 389 | 16–Ø30 | 34 | 274 | 110 |
Sketch Butterfly valves Elephant WBV3EX-3432M-1W-F-ISO, body material - Carbon steel, disk material - Stainless steel AISI 316, seal - Metal, gearbox HAM RQN
Materials of butterfly valves Elephant WBV3EX-3432M-1W-F-ISO, body material - Carbon steel, disk material - Stainless steel AISI 316, seal - Metal, gearbox HAM RQN:
| № | Part name | Material |
| 1 | Body | WCB steel |
| 2 | Disk | stainless steel 316 |
| 3 | Stem | stainless steel 316 |
| 4 | Seat seal | metal (D507 cladding) + graphite |
| 5 | Gland seal | stainless steel 316 + graphite |
Sketch of parts and materials Butterfly valves WBV3EX-3432M-1W-F-ISO, body material - Carbon steel, disk material - Stainless steel AISI 316, seal - Metal, gearbox HAM RQN
Main technical data and characteristics HAM RQNx-xZ-x gearboxes:
| Ambient temperature, ⁰C | -30 to +120 |
| Enclosure protection class | IP67 |
| Application | for various industries where fluid flow control is required |
| Mounting | horizontal/vertical |
| Stroke adjustment | 0 - 90° (adjustable ±5°) |
| Connection standard | ISO 5211 |
HAM gearboxes
Basic materials of HAM gearbox components:
| № | Name | Material |
| 1 | Bolt | stainless steel 304 |
| 2 | Index | ABS plastic |
| 3 | Cover | aluminum alloy |
| 4 | Sealing ring | NBR70 |
| 5 | Pin | black steel |
| 6 | Worm gear | ductile iron |
| 7 | Seal | NBR70 |
| 8 | Housing | aluminum alloy |
| 9 | Adjusting bolt | black steel |
| 10 | Gasket | stainless steel 304 |
| 11 | Adjusting nut | stainless steel 304 |
| 12 | Nut cover | NBR70 |
| 13 | Bearing | powder steel |
| 14 | Worm shaft | steel 45 |
| 15 | Seal | NBR70 |
| 16 | Drive shaft | stainless steel 304 |
| 17 | Handwheel | polyester coated carbon steel |
| 18 | Pin | black steel |
HAM sketch RQNx-xZ-x
Overall and mounting dimensions of HAM RQNx-xZ-x gearboxes:
| Model | HAM RQN1-180Z-T40 |
HAM RQN2-300Z- T37 |
HAM RQN3-540Z- T36 |
HAM RQN4-675Z- T36 |
HAM RQN5-1500Z- T50 |
| D, mm | 80 | 100 | 120 | 142 | 175 |
| D1, mm | 70 | 90 | 102 | 125 | 140 |
| D2, mm | 50 | 70 | 70 | 102 | 102 |
| n-M1 | 4-M6x10 | 4-M8x12 | 4-M8x10 | 4-M8x10 | 4-M8x10 |
| n-M2 | 4-M8x12 | 4-M10x12 | 4-M10x15 | 4-M12x18 | 4-M16x24 |
| S, mm | 17x17 | 17x17 | 22x22 | 24x24 | 27x27 |
| L, mm | 115 | 130 | 150 | 180 | 220 |
| L1, mm | 50 | 58 | 65 | 80 | 95 |
| L2, mm | 42 | 50 | 60 | 60 | 78 |
| H, mm | 48 | 58 | 58 | 74 | 84 |
| H1, mm | 19 | 18 | 18 | 21 | 51 |
| d1, mm | 20 | 20 | 20 | 20 | 25 |
| L3, mm | 160 | 160 | 215 | 225 | 325 |
| W, mm | 140 | 200 | 250 | 300 | 400 |
HAM sketch RQNx-xZ-x
Technical data of HAM RQNx-xZ-x gearboxes:
| Model | HAM RQN1-180Z-T40 |
HAM RQN2-300Z- T37 |
HAM RQN3-540Z- T36 |
HAM RQN4-675Z- T36 |
HAM RQN5-1500Z- T50 |
| Gear ratio | 40:1 | 37:1 | 36:1 | 36:1 | 50:1 |
| Torque, Nm | 180 | 300 | 540 | 675 | 1500 |
| ISO flange type | F05/F07 | F07/F09 | F07/F10 | F10/F12 | F10/F14 |
| Weight, kg | 1.2 | 2 | 2.8 | 4.8 | 11 |
