Water Butterfly valves Elephant WBV3131S-2W-W-H, body material - stain – Valve Elephant
Elephant  |  SKU: D050-67842

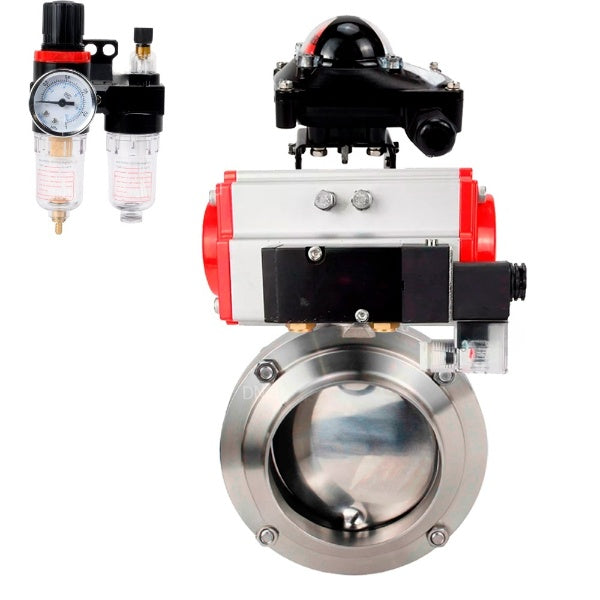

Water Butterfly valves Elephant WBV3131S-2W-W-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA, pneumatic distributor 4M310-08 24V, LSU APL-210N, ATU AFC2000

€262,53
Impuestos incluidos. Los gastos de envío se calcularán al momento de pagar.

Entrega y envío

El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.

Si tiene alguna pregunta sobre nuestros productos, opciones de envío o cualquier otra cosa, no dude en comunicarse con nosotros.

Descripción

Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
Pneumatic Elephant pneumatic double-acting rotary actuators PA-DA-XXX and pneumatic rotary actuators with return spring PA-SA-XXX are designed for automation of industrial valves control process with maximum torque up to 2128 Nm.
Pneumatic valves are used for control in pneumatic systems with NAMUR docking surface, for installation of valves through holes in the body. Electromagnetic control, is realized by means of voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, the valves have one-way or two-way control. Solenoid operated pneumatic valves have a wide range of models and include common switching types for three (3/2) and five (5/2 and 5/3) line pneumatic valves. They are designed for use with quarter-turn pneumatic actuators.
Limit switch unit is designed for visual and electrical signaling of end positions of the valve shut-off body: valve, tap or disk gate. It is mounted on top of the pneumatic actuator surface and connected to the actuator shaft in DIN standard. The sealed box usually contains two sensors, which monitor the position of the actuator shaft and signalize in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors.
The air treatment unit is designed to clean compressed air from moisture and solid particles, remove condensate, automatically maintain the pressure at a preset level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system.







Technical characteristics of water butterfly valves Elephant WBV3131S-2W-W-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA, pneumatic distributor 4M310-08 24V, limit switch unit APL-210N, ATU AFC2000:

Characteristic

Value

Type of valve

Rotary disc

Diameter

15–100 mm

Nominal pressure

10 bar

Working medium temperature

From -50 to +180°C

Application

Food industry

Type of connection

Under weld

Type of control

Pneumatic actuator

Tightness class

A

Warranty

12 months



Technical data of pneumatic actuators Elephant with return springs PA-SA-XXX:

Characteristic

Value

Type of pneumatic actuator

With return springs

Actuator torque

14–30 Nm

Nominal pressure

12 bar

Operating pressure

2...8 bar

Maximum particle diameter

Less than 30 µm²

Working medium

Filtered compressed air or non-aggressive gases, oils

Adjustment range

±5° for rotation at 0° and 90°

Air supply

G1/4"

Working medium temperature

From -20 to +80 °C





Technical characteristics of pneumatic valves Elephant 4M310-08 24V:

Characteristics Value
Model of pneumatic valve 4M310-08 24V
Supply voltage 24V
Construction Spool type
Nominal pressure 12 bar
Working pressure 1.5...8 bar
Ambient temperature From +5 to +50 ⁰C
Working medium Filtered compressed air
Response frequency 5 cycles/s
Degree of protection IP65
Fastening Through holes in the housing
Body material Anodized aluminum
Response time 0.05 sec.




Technical characteristics of limit switch units Elephant APL-210N:

Value Execution
Model of limit switch unit APL-210N
Protection All-weather IP65
Ambient temperature From -40°C to +80°C
Cable gland threads 2 x NPT1/2"
Terminal block 8 cells 0.08-2.6mm²
Voltage 12V, 24V, 38V, 48V, 110V, 220V, 250V
Sensor 2 SPDT electromechanical microswitches OMRON V151-1C25
External coating Polyester coating (black)
Shaft Standard shaft (17mm)




Technical characteristics of air treatment units Elephant AFC2000:

Characteristic

Value

Operating pressure

8 bar

Maximum pressure

10 bar

Adjustable pressure range

0.5...9 bar

Fracture pressure

15 bar

Working temperature

From -5°C to +60°C

Air connection

1/4"

Particle size filtration

40 µm

Oil viscosity

ISO VG 32





Overall and installation sizes of water butterfly valves Elephant WBV3131S-2W-W-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA, pneumatic distributor 4M310-08 24V, limit switch unit APL-210N, ATU AFC2000:

Diameter D, mm t, mm D1, mm A, mm H, mm J, mm K, mm
DN15 18 1.5 78 50 86 126 8x8
DN20 23 1.5 78 50 86 126 8x8
DN25 29 1.5 78 50 86 126 8x8
DN32 35 1.5 86 50 90 126 8x8
DN40 41 1.5 90 50 92 126 8x8
DN50 53 1.5 106 52 104 133 10x10
DN65 70 2.0 124 56 113 144 10x10
DN80 85 2.0 139 60 123.5 160 10x10
DN100 104 2.0 159 64 133.5 160 10x10





Dimensions and mounting sizes of Elephant rotary actuators with return springs PA-SA-XXX:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm M, mm N, mm O, mm P, mm
PA-DA(SA)-052 108 153 30 41 72 26 15 80 30 34 20
PA-DA(SA)-065 125 174 36 46 89 26 15 80 30 34 20
PA-DA(SA)-083 152 216 46 55 109 26 15 80 30 34 20
PA-DA(SA)-105 189 279 55 64 134 26 25 80 30 41 20
PA-DA(SA)-130 210 308 67.5 70 157 36 25 80 30 62 30
PA-DA(SA)-140 268 405 76 77 174 36 30 130 30 62 30
PA-DA(SA)-160 310 465 87.5 87.5 199 38 30 130 30 62 30
PA-DA(SA)-210 390 542 113 113 257 38 40 130 30 79 30
PA-DA(SA)-270 510 722 146 146 333 38 52 130 30 79 30





Overall and installation sizes of pneumatic valves Elephant 4M310-08 24V:

Depth, mm 27
Height, mm 69
Width, mm 134.5





Dimensions and installation sizes of limit switch units Elephant APL-210N:

Depth, mm 112
Height, mm 77
Width, mm 88





Dimensions and sizes of air treatment unit Elephant AFC2000:

Model AFC2000
A, mm 162
B, mm 88
C, mm 139
D, mm 31
E, mm 53.5
F, mm 12
G, mm 8
H, mm 7
I, mm 13.3
J, mm 39
K, mm 5
L, mm 40
M, mm 32
N, mm 53
O, mm 29
P, mm 6
R, mm 41.5




Materials of water butterfly valves Elephant WBV3131S-2W-W-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA, pneumatic distributor 4M310-08 24V, limit switch unit APL-210N, ATU AFC2000:

№

Part name

Material

1

Body

Stainless steel 304

2

Swivel unit

Stainless steel 304

3

Disc

Stainless steel 304

4

Seat seal

Silicon

5

Nut

Steel A2~70

6

Bolt

Steel A2~70

7

Plug

Plastic ABS





Construction of pneumatic rotary actuators Elephant with return springs PA-SA-XXX:

№

Name

Quantity

Material

Coating

1

Body

1

Extruded aluminum

Hard anodized

2

Side plugs

2

Cast aluminum

-

3

Gear

1

Stainless steel

Nickel-plated

4

Piston

2

Steel/Aluminum

Oxidation/galvanized

5

Plugs

8

Stainless steel

-

6

Piston ring

2

NBR

-

7

Springs

0–12

Spring steel

Epoxy coating

8

Piston bearing

2

Engineering plastic

-

9

Piston ring

2

NBR

-

10

Plug

2

NBR

-

11

Thrust ring

2

Engineering plastic

-

12

Ring

1

Engineering plastic

-

13

Washer

1

Stainless steel

-

14

Spring clip

2

Stainless steel

-

15

Indicator

1

Plastic

-

16

Indicator body

1

Plastic

-

17

Bearing

1

Engineering plastic

-

18

Cam

1

Steel

Oxidation/ galvanized steel

19

Bearing

1

NBR

-

20

Bearing

1

Engineering plastic

-

21

Bearing

1

Engineering plastic

-

22

Sealing ring

2

NBR

-

23

Sealing ring

2

NBR

-

24

Bearing

2

Stainless steel

-

25

Adjustment nut

2

Stainless steel

-

26

Adjustment screw

2

Stainless steel

-

27

Bushing

2

Aluminum

-



Especificaciones
  • País de origen
    China
  • Temperatura máxima permitida
    180 °C
  • Tipo de conexión
    for welding
  • Entorno operativo
    Water, Steam, Neutral Media
  • Tipo de sello
    Silicon
  • Material del disco
    stainless steel AISI 304
  • Anulación manual
    Hexagon
  • Interruptores de límite
    Yes
  • Tipo de actuador neumático
    with return springs

Reseñas (0)
