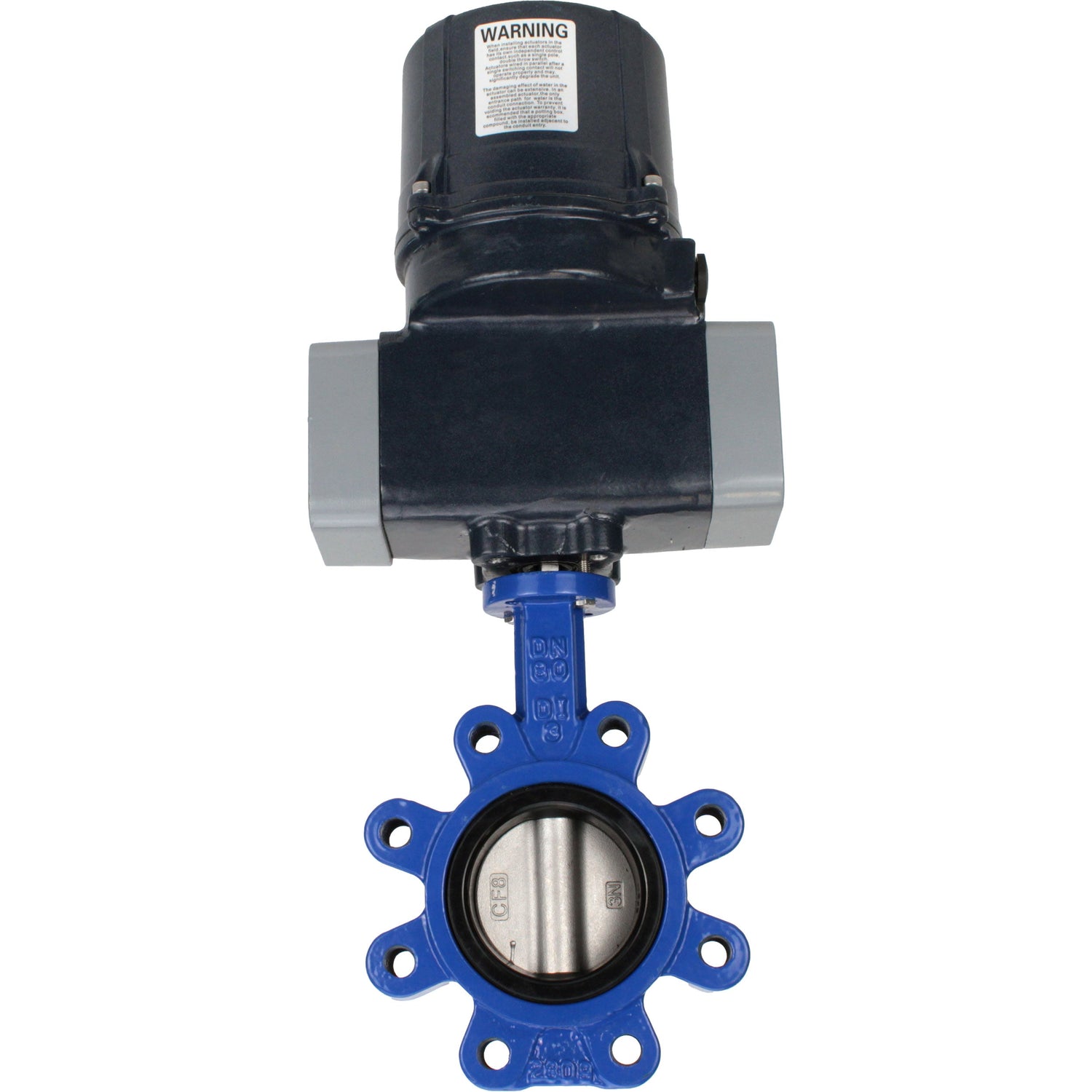

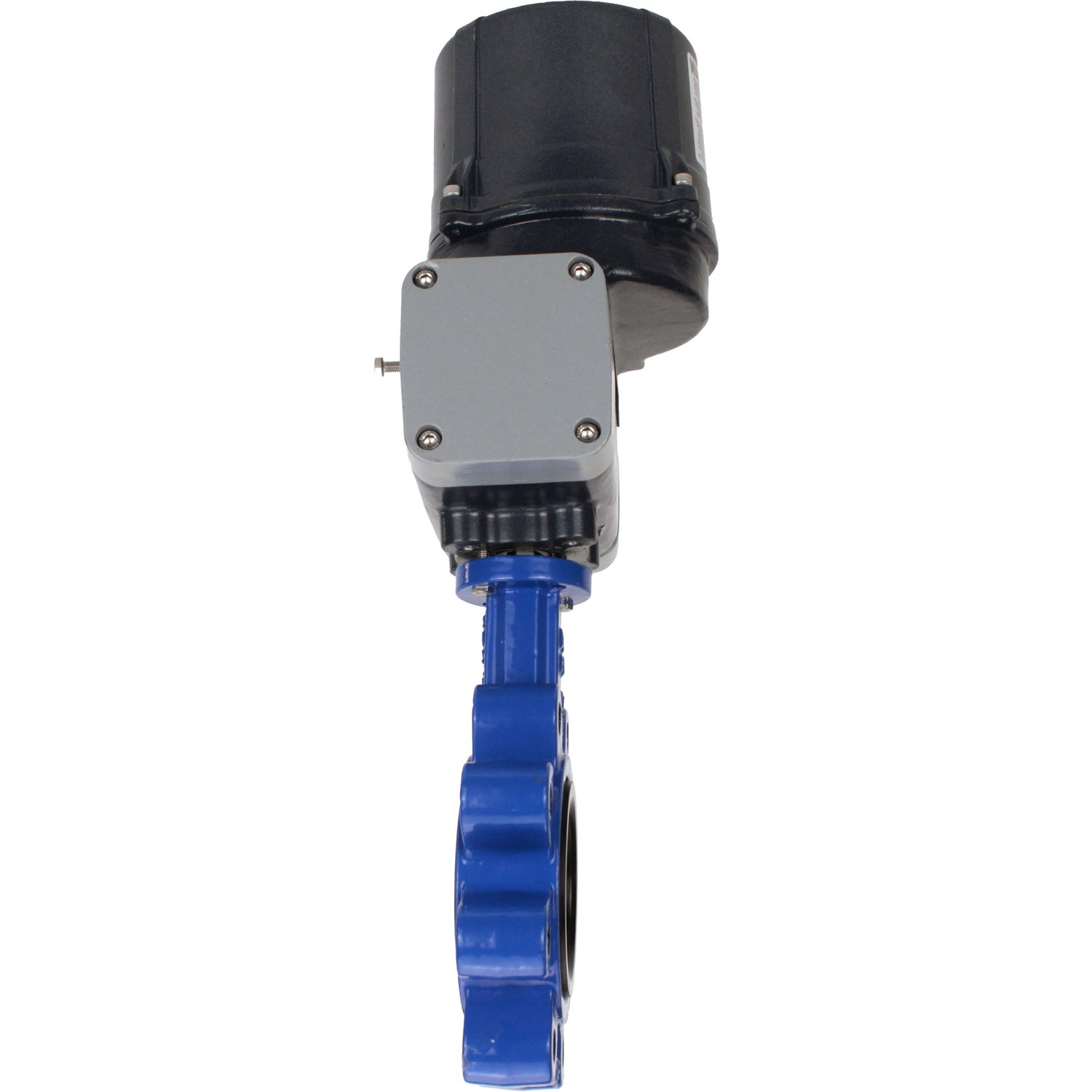

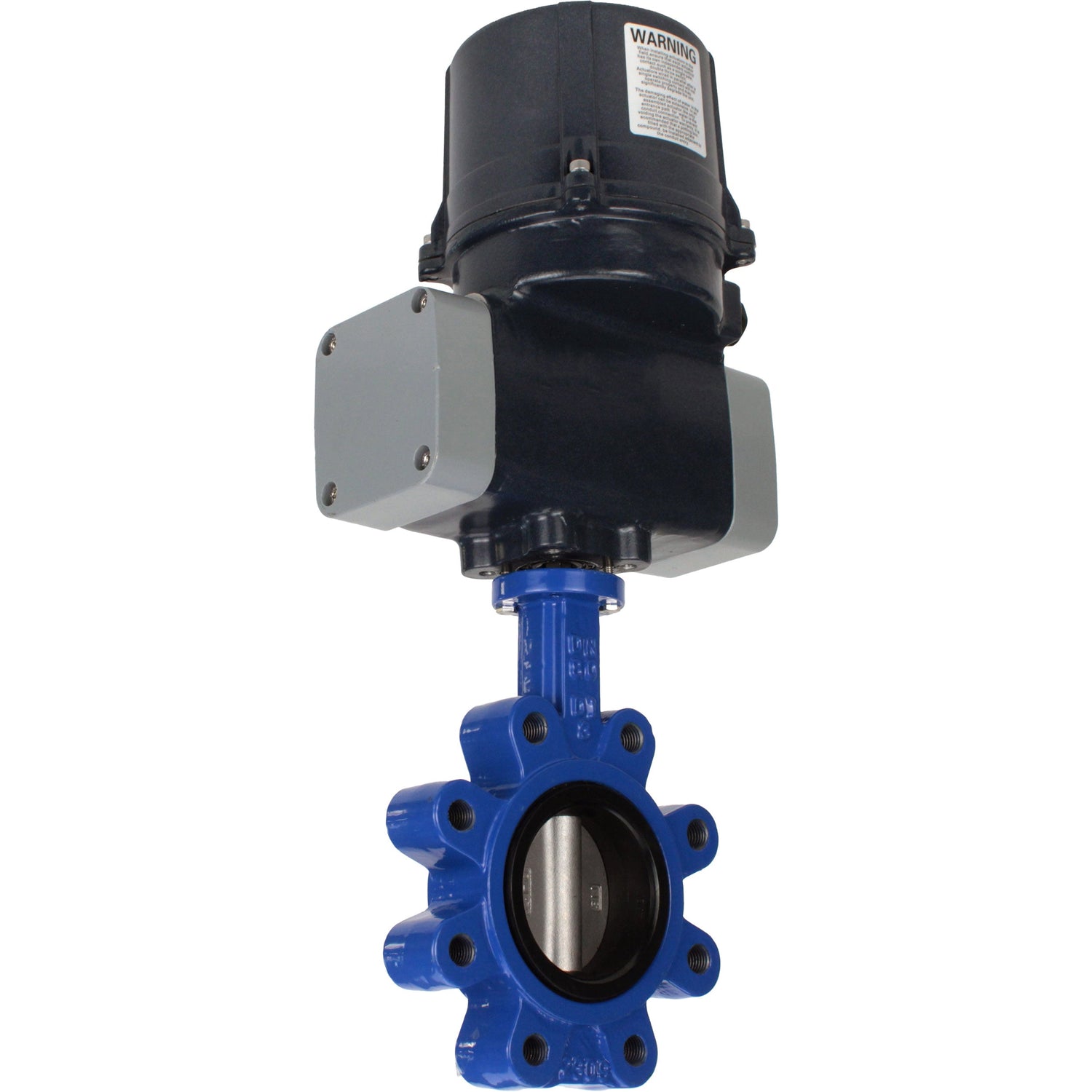

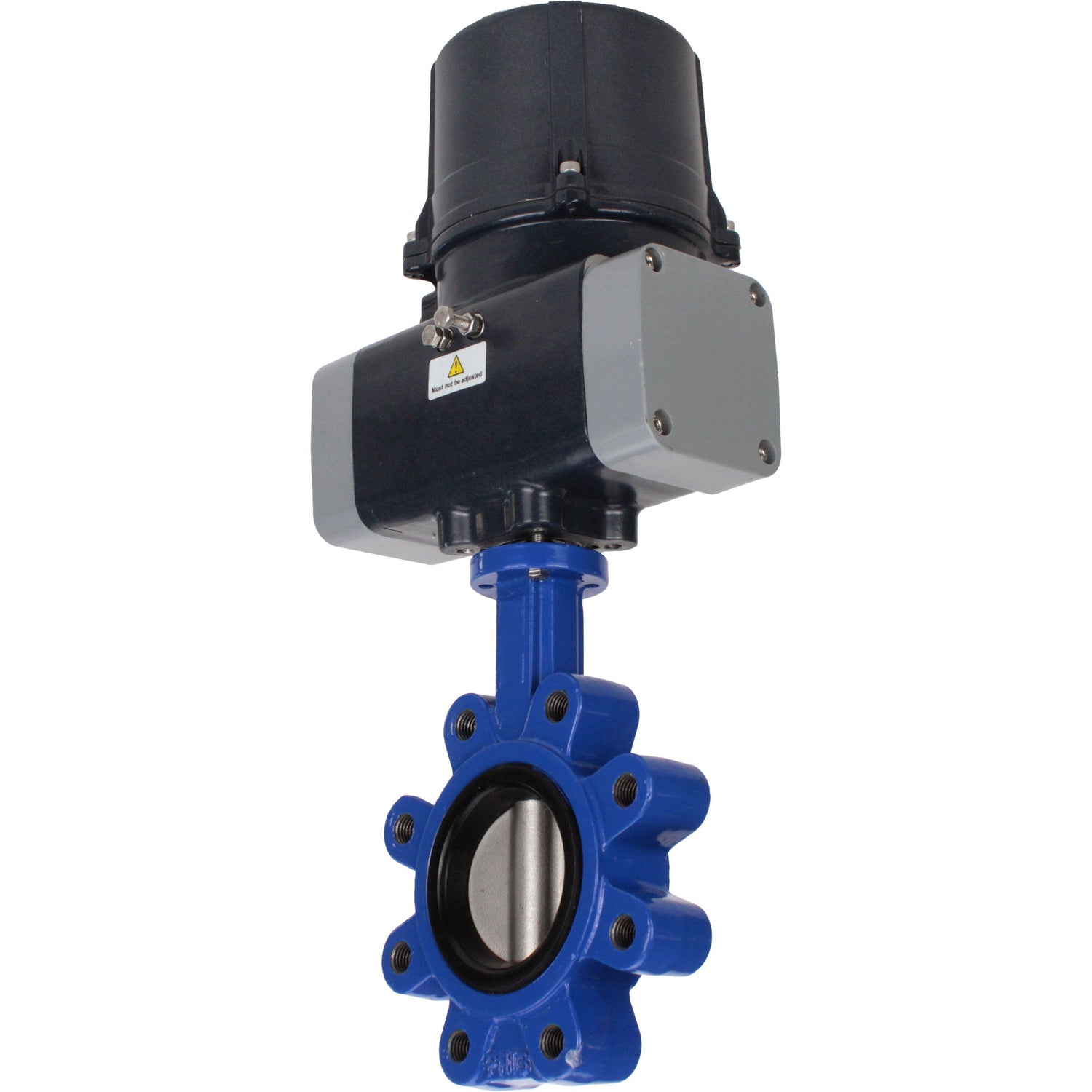

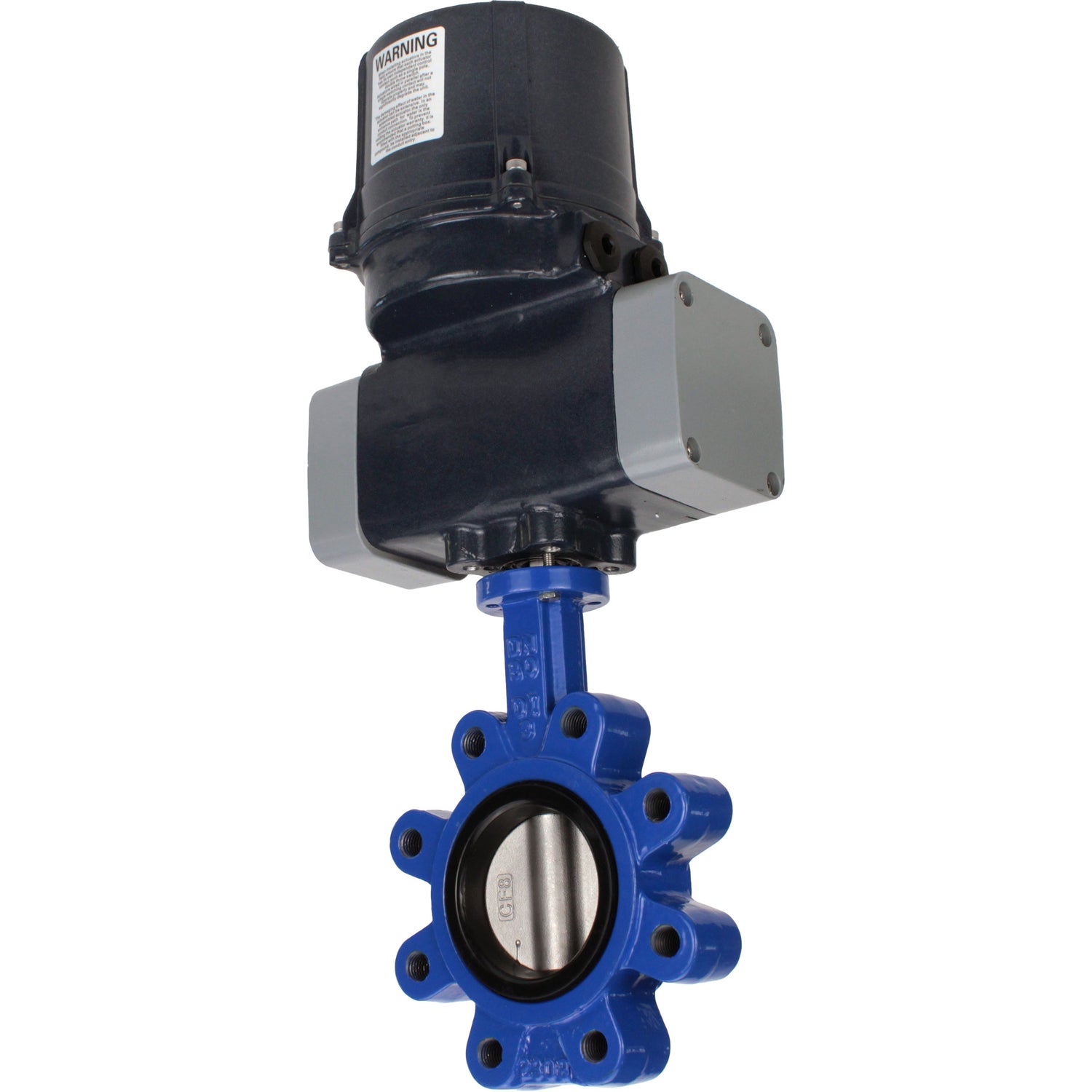

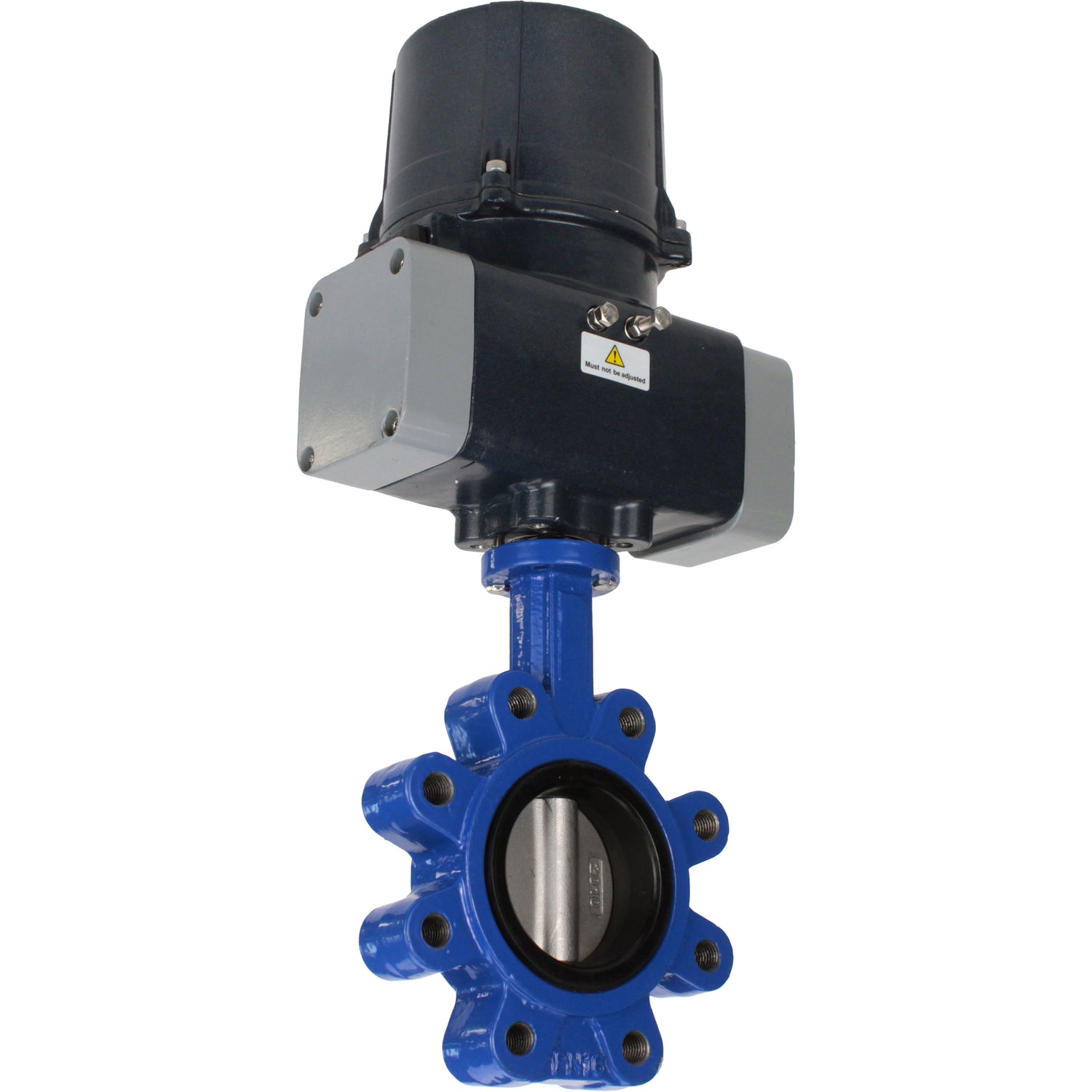

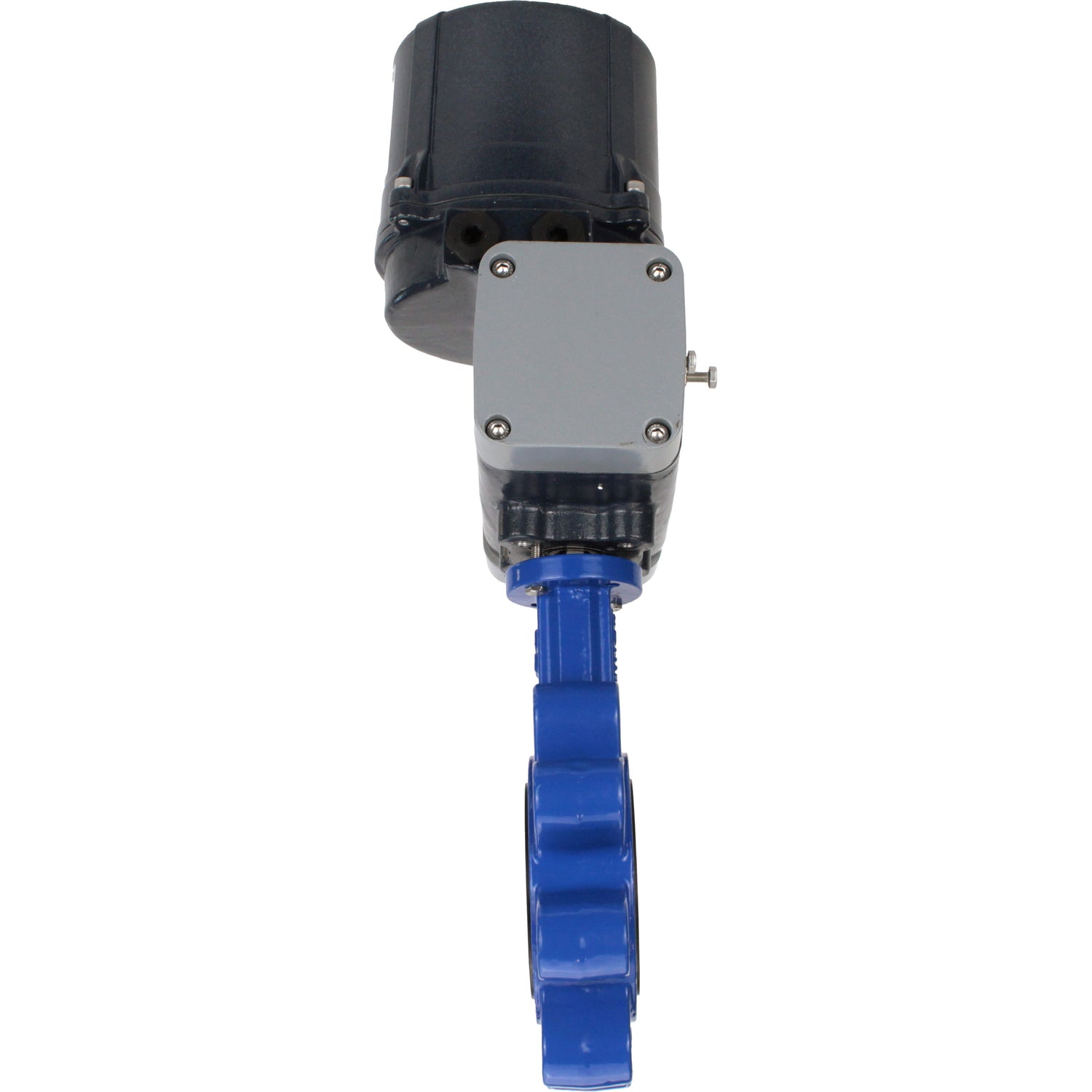

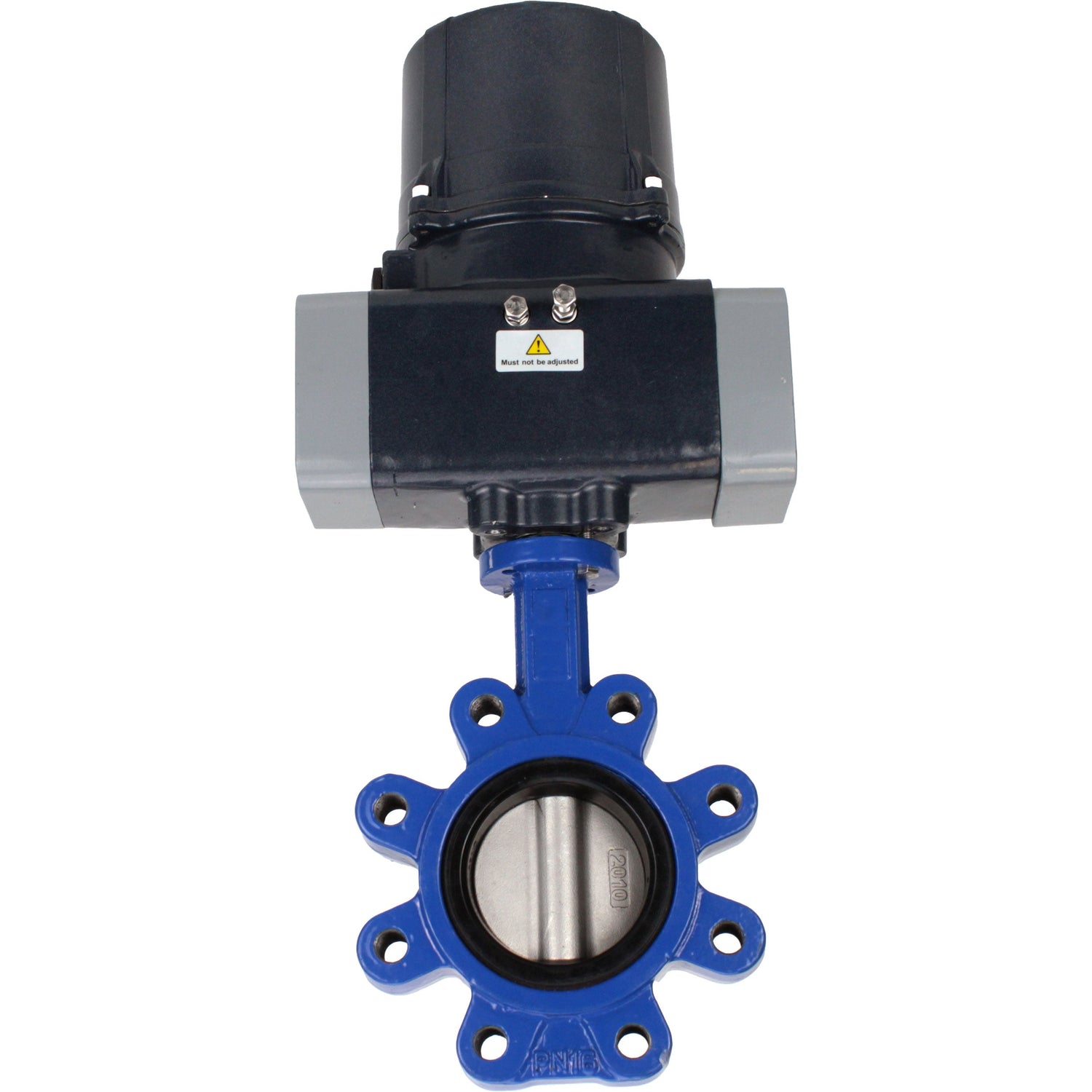

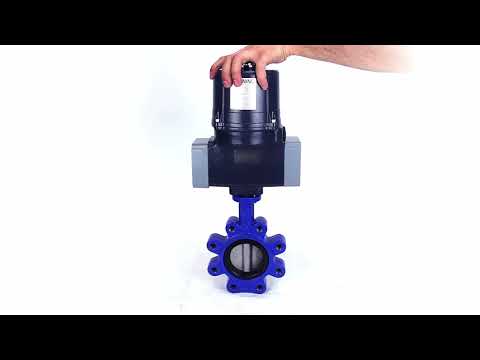

Butterfly valves Elephant WBV1631E-2W-Fb-H LUG interflanged, body - cast iron GGG45/QT450, disc - stainless steel AISI 304, seal - EPDM, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
Butterfly valves Elephant WBV1631E-2W-Fb-H LUG interflanged, body - cast iron GGG45/QT450, disc - stainless steel AISI 304, seal - EPDM, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC - DN50 / 16 bar está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Entrega y envío
Entrega y envío
El costo de envío se determina durante el proceso de pago y varía según varios factores, incluido el tipo de producto, el tiempo de entrega, el proveedor de servicios y el país de destino.
Descripción
Descripción
Rotary disc gate valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Electric actuator with spring return is designed for safe control of valves or dampers in case of power supply voltage loss. They are used in various industries. Principle of operation: this actuator is applicable in short-term mode S2 with the duration of switching on 20 minutes. The actuators are powered from the AC mains 220V 50Hz 1 phase. When the actuator is energised, the valve shut-off valve is set in motion and the spring is compressed. When the power supply is switched off, the spring is unclamped, actuating the actuator and ensuring return of the valve shut-off body to the initial position (full opening or full closing).
Technical characteristics of butterfly valves Elephant WBV1631E-2W-Fb-H LUG interflanged, body - cast iron GGG45/QT450, disc - stainless steel AISI 304, seal - EPDM, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
| Name | Value |
|---|---|
| Nominal Pressure, bar | 16 |
| Connection Type | Wafer |
| Control Type | Electric actuator |
| Application | Water supply, heating supply |
| Operating Temperature, °C | from -20 to 150 |
| Tightness Class | A |
| Country of Origin | China |
Dimensions and dimensions of butterfly valves Elephant WBV1631E-2W-Fb-H LUG interflanged, body - cast iron GGG45/QT450, disc - stainless steel AISI 304, seal - EPDM, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
| DN | A, mm | B, mm | D, mm | A1, mm |
| 50 | 72.5 | 130.5 | 125 | 229 |
| 65 | 77.5 | 146.5 | 145 | 266 |
| 80 | 92 | 156 | 160 | 266 |
| 100 | 109 | 168.5 | 180 | 377 |
| 125 | 127 | 190.5 | 210 | 377 |
| 150 | 141 | 213.5 | 240 | 377 |
Dimensions and dimensions of butterfly valves Elephant WBV1631E-2W-Fb-H LUG interflanged, body - cast iron GGG45/QT450, disc - stainless steel AISI 304, seal - EPDM, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
Table of parts and materials for butterfly valves Elephant WBV1631E-2W-Fb-H LUG interflanged, body - cast iron GGG45/QT450, disc - stainless steel AISI 304, seal - EPDM, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
| № | Part Name | Material |
|---|---|---|
| 1 | Valve Body | Ductile Iron QT450 |
| 2 | Disc | Stainless Steel 304 |
| 3 | Seat Seal | EPDM |
| 4 | Shaft | Stainless Steel SS 316 |
| 5 | Actuator Housing | Aluminum Alloy AL104 |
| 6 | Actuator Upper Cover | Aluminum Alloy ADC12 |
Sketch of parts and materials of rotary disc gate valves Elephant WBV1631E-2W-Fb-H LUG interflanged, body - cast iron GGG45/QT450, disc - stainless steel AISI 304, seal - EPDM, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
Technical parameters of quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
| Name | Value |
|---|---|
| Type of Electric Actuator | Quarter-turn with Spring Return |
| Power Supply Voltage, V | 220V |
| Rotation Angle, ° | 90±5 |
| Mechanical Stop | Yes |
| Average Lifespan, Open/Close Cycles | 100,000 |
| Enclosure Protection Rating, IP | 67 |
| Explosion Protection | No |
| Ambient Temperature, °C | -25°C to +65°C |
| Country of Manufacture | China |
Dimensions and dimensions of electric quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
| Model | A | B | C | D | E | H |
| QTSA-N-003EM-O0-220VAC | 229 | 303 | 162 | 145 | 75 | 17 |
| QTSA-N-005EM-O0-220VAC | 266 | 380 | 199 | 177 | 96 | 19 |
| QTSA-N-007EM-O0-220VAC | 266 | 380 | 199 | 177 | 96 | 19 |
| QTSA-N-014EM-O0-220VAC | 377 | 436 | 240 | 206 | 120 | 25 |
| QTSA-N-020EM-O0-220VAC | 377 | 436 | 240 | 206 | 120 | 25 |
| QTSA-N-030EM-O0-220VAC | 406 | 535 | 280 | 260 | 120 | 30 |
Sketch of dimensions and dimensions of quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
Parts and materials table for quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
| № | Part Name | Material |
|---|---|---|
| 1 | Top Cover | Aluminum Alloy ADC12 |
| 2 | Housing | Aluminum Alloy AL104 |
| 3 | Side Cover | Aluminum Alloy ADC12 |
| 4 | Cable Gland | Nylon |
| 5 | Return Springs | Spring Steel |
| 6 | Piston | Aluminum Alloy ADC12 |
| 7 | Separator Block | Carbon Steel 45 |
| 8 | Drive Mechanism | Alloy Steel 40Cr |
| 9 | Viewing Window | Tempered Glass |
| 10 | Cable Gland (Fireproof) | Fireproof Nylon |
| 11 | Heater | Ceramic |
| 12 | Electric Motor | Integrated Assembly |
| 13 | Adjustment Cam | Aluminum Alloy ADC12 |
| 14 | Limit Micro Switches | Integrated Assembly |
| 15 | Mounting Plate | Carbon Steel Q235 |
| 16 | Output Shaft | Carbon Steel 45 |
| 17 | Bearing | Stainless Steel |
| 18 | Position Indicator | Nylon |
| 19 | Capacitor | Composite Material |
| 20 | Terminal Block | Integrated Assembly |
Sketch of parts and materials of quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
Especificaciones
Especificaciones
-
País de origen
-
Temperatura máxima permitida
-
Tipo de conexión
-
Entorno operativoWater, Oils, Hydrocarbons
-
Tipo de sello
-
Material del disco
